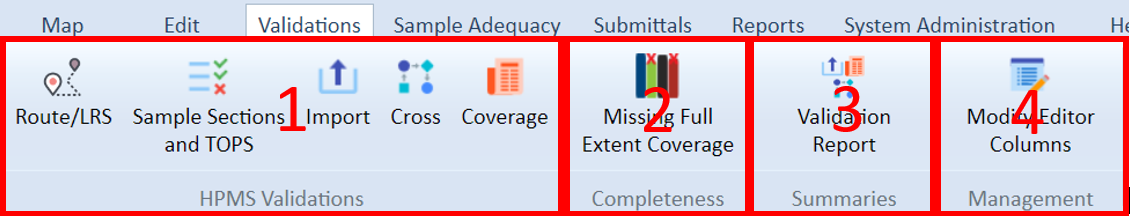

The Validations tab is used to execute and view HPMS validation reports before submitting data. There are four sections on this ribbon: HPMS Validations, Completeness, Summaries, and Management.

Icons

Each icon on this tab leads to an interface. These icons and the specific roles of their interfaces are listed below by section.

HPMS Validations

The following tools are provided under the HPMS Validations group:

1. -- Route/LRS: Opens the interface to run route ID, geometry, and measure validations.
2. -- Sample Sections and TOPS: Opens the interface to run validations for Sample Sections and TOPS items.
3. -- Import: Opens the interface to run import validations for the HPMS Data Items.
4. -- Cross: Opens the interface to run cross validations for the HPMS Data Items.
5. -- Coverage: Opens the interface to run coverage validations for the HPMS Data Items.

Completeness

The following tools are provided under the Completeness group:

1.  -- Missing Full Extent Coverage: Opens the interface to run validations for data item completeness.

Summaries

The following tools are provided under the Summaries group:

1.  -- Validation Report: Opens the interface to run all validations.

Management

The following tools are provided under the Management group:

1.  -- Modify Editor Columns: Opens the interface to configure the display of the Validation Editor.
