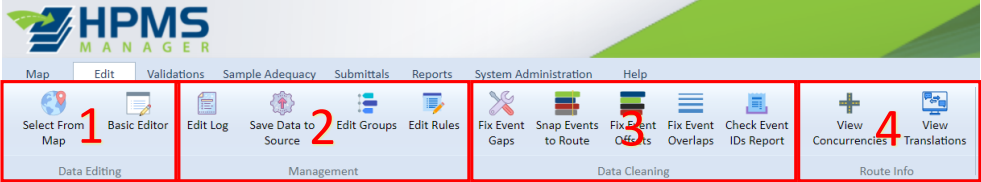

The Edit tab provides controls for editing data, viewing data, and saving edits previously applied to the HPMS data. There are 4 sections for the Edit ribbon: Data Editing, Management, Data Cleaning, and Route Info.

Icons

Each icon on this tab, except for the Select from Map icon, leads to an editing interface. These icons and their specific roles are listed below by section.

Data Editing

The following tools are provided under the Data Editing group:

1. -- Select from Map: Used to interactively click on a route and begin editing.
2. -- Basic Editor: Opens the interface to search, create, and edit HPMS Data.

Management

The following tools are provided under the Management group:

1. -- Edit Log: Opens the interface to view recorded edits to Data Tables.
2. -- Save Data to Source: Opens the interface to view edits to Data Tables and to update source data.
3. -- Edit Groups: Opens the interface to manage columns (Edit Groups) displayed in Basic Editor.
4. -- Edit Rules: Opens the interface to view and edit validation rules.

Data Cleaning

The following tools are provided under the Data Cleaning group:

1. -- Fix Events Gaps: Opens the interface to find and fix gaps in Roads and Highways events.
2. -- Snap Events to Route: Opens the interface to find and fix measure offsets between routes and events.
3. -- Fix Event Offsets: Opens the interface to find and fix measure offsets between events.
4. -- Fix Events Overlaps: Opens the interface to find and fix overlapping events.
5. -- Check Event IDs Report: Opens the interface to generate reports of duplicate or missing event IDs.

Route Info

The following tools are provided under the Route Info group:

1. -- View Concurrencies: Opens the window which displays all locations where there are overlaps in the route network.
2. -- View Translations: Opens the window which displays all locations where there are translations in the route network.
